APOLLO PROBE
PMIC 반도체 테스트와 같은 고전류 테스트 또는 극한의 고온 테스트에 적합한 솔루션을 제공합니다.
| sortation | Product Specifications | |
|---|---|---|
| Spring Force | Initial Force | 8.5 gf |
| Recommended Stroke | 28.0gf @ 0.35mm | |
| Full Stroke | 33.6gf @ 0.45mm | |
| MaTerial Spec. | Barrel | Phosphor Bronze Tube (Au Plated) |

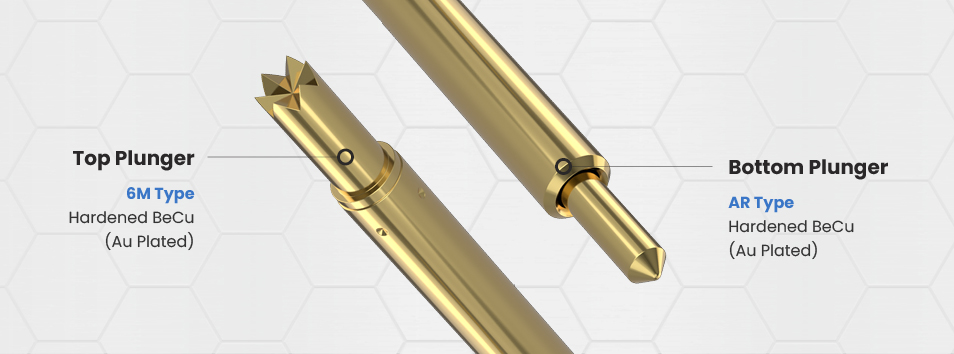

| Top Plunger | Hardened BeCu (Au Plated) | |
| Bottom Plunger | Hardened BeCu (Au Plated) | |
| Spring | Stainless Steel (G4) | |
| Mecahnical Spec. | Pointing Accuracy | ±0.05mm |
| Operating Temperature | -55˚C to +200˚C | |
| Spring Life Expectancy | 250k Cycle | |
| Electrical Spec. | DC Resistance (Avg.) | Less Than 50mΩ |
| Current Rating | 5.0 Sec at 4.0 A (Reference) | |
| Band Width | TBD (To Be Determined) | |
| Self Inductance | ||
| Capacitance | ||
