BRILLIANT PROBE

제품의 수명을 연장하기 위한 기술로, Device와 접촉되는 Plunger에 DS Testics만의 기술을 적용하여
Sn전이로 인한 오염을 억제하여 Life Time을 늘리고 Cleaning에 소요되는 시간을 단축시킬 수 있습니다.

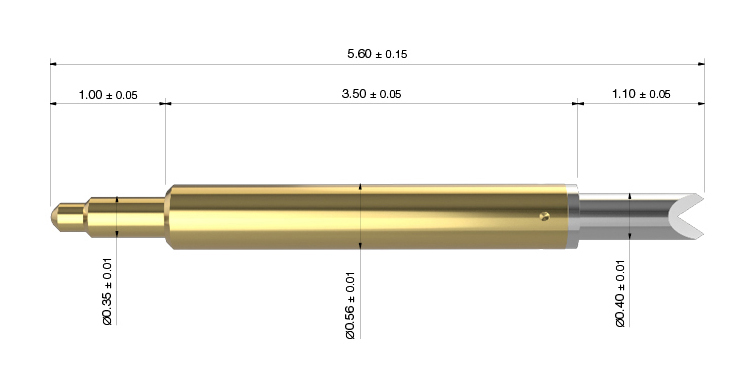

sortation	Product Specifications
Spring Force	Initial Force	4.1gf
	Recommended Stroke	26.0gf @ 0.55mm
	Full Stroke	36.0gf @ 0.80mm
MaTerial Spec.	Barrel	Phosphor Bronze Tube (Au Plated)

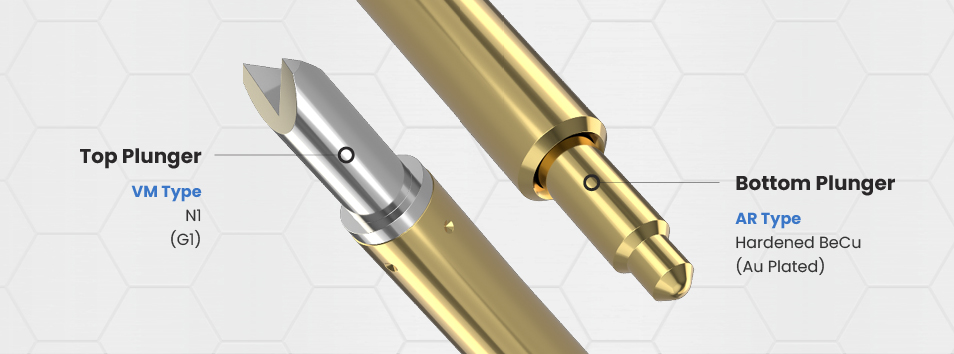

	Top Plunger	N1 (G1)
	Bottom Plunger	Hardened BeCu (Au Plated)
	Spring	Music Wire (Au Plated)
Mecahnical Spec.	Pointing Accuracy	±0.055mm
	Operating Temperature	-45 to +125 ̊C
	Spring Life Expectancy	1,000k Cycle
Electrical Spec.	DC Resistance (Avg.)	Less Than 60mΩ
	Current Rating	3.0 A Continuous (Reference)
	Band Width	TBD (To Be Determined)
	Self Inductance
	Capacitance
