NIMBLE PROBE

높은 주파수 대역의 테스트에 사용되는 기술로 적절한 임피던스 매칭으로 반사손실 및 삽입손실을 최소화 할 수 있는 제품을 제공합니다.

sortation	Product Specifications
Spring Force	Initial Force	8.5gf
	Recommended Stroke	34.7gf @ 0.40mm
	Full Stroke	41.2gf @ 0.50mm

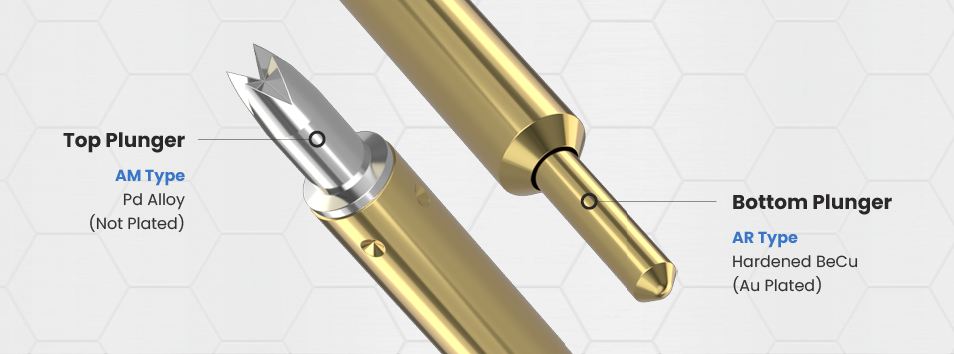

Material Spec.	Barrel	Phosphor Bronze Tube (Au Plated)
	Top Plunger	Pd Alloy (Not Plated)
	Bottom Plunger	Hardened BeCu (Au Plated)
	Spring	Music Wire (Au Plated)
Electrical Spec.	Current Rating	2.0 A Continuous
	Self Inductance	0.49 nH
	Capacitance	0.39 pF
	Characteristic Impedance	35.23 Ω
	Propagation Delay	13.81 ps
	DC Resistance (Avg.)	Less Than 60m Ω

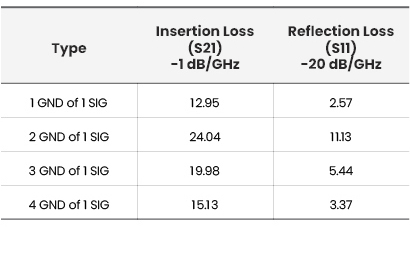

change ground of 1 signal

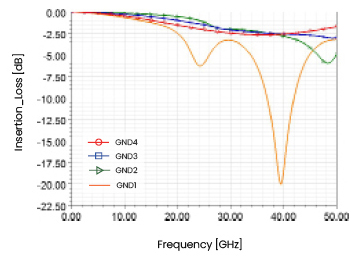

insertion loss
