GENESIS PROBE

통상적으로 사용되는 제품들의 경도를 한층 업그레이드하여 내마모에 대한 성능 향상을 기대 할 수 있습니다.

sortation	Product Specifications
Spring Force	Initial Force	5.7gf
	Recommended Stroke	34.6gf @ 0.40mm
	Full Stroke	44.9gf @ 0.55mm
MaTerial Spec.	Barrel	Phosphor Bronze Tube (Au Plated)

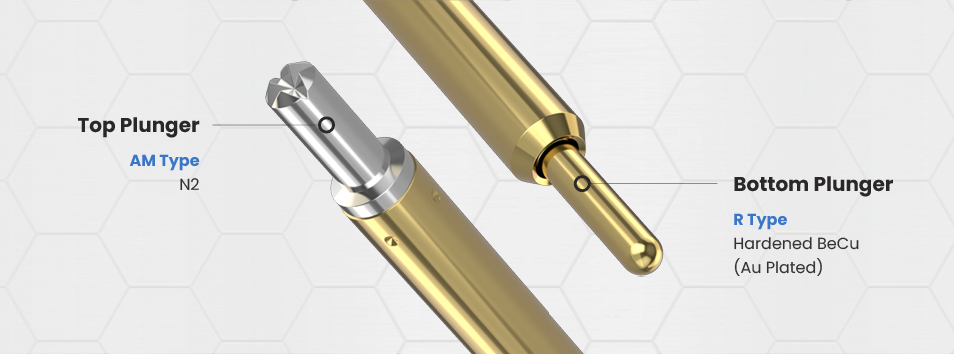

	Top Plunger	N2
	Bottom Plunger	Hardened BeCu (Au Plated)
	Spring	Music Wire (Au Plated)
Mecahnical Spec.	Pointing Accuracy	±0.050mm
	Operating Temperature	-45 to +125˚C
	Spring Life Expectancy	250k Cycle
Electrical Spec.	DC Resistance (Avg.)	Less Than 60mΩ
	Current Rating	2.0 A Continuous (Reference)
	Band Width	TBD (To Be Determined)
	Self Inductance
	Capacitance
